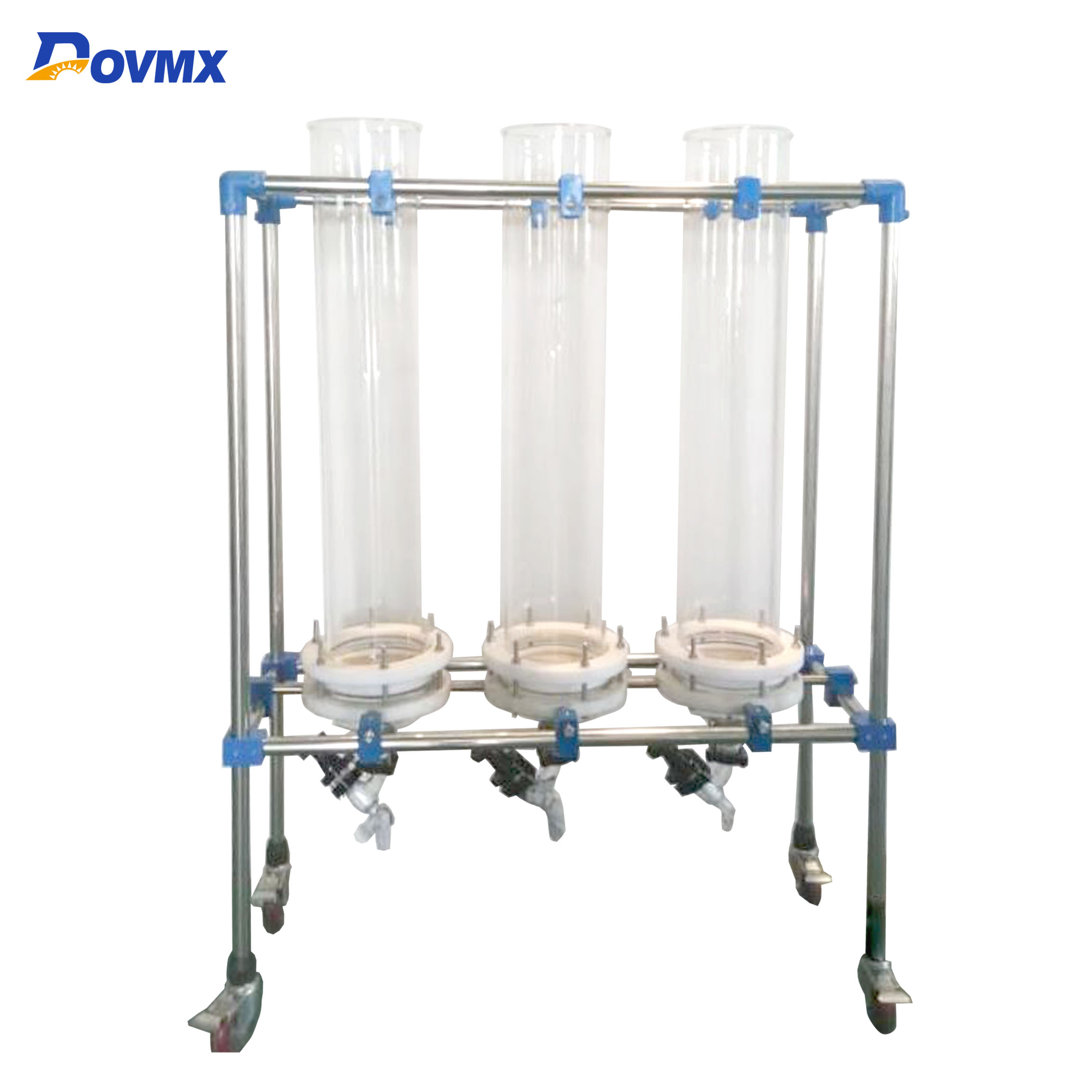

Product Name：Glass-column-DGC-132*1000

Product Model：DGC-132*1000

Product Brief：

Chromatography column is the main body of gel chromatography, generally used glass tube or plexiglass tube. A chromatographic method for separation of components in a sample mixture according to their different partition coefficients in the stationary phase and the mobile phase

Product FeaturesProduct characteristics

1. The main body is high borosilicate 3.3, corrosion-resistant and high transparency;

2. Filter part, detachable, convenient for replacement and cleaning

3. Casters with brake function at the bottom of the frame are convenient to move.

Product ParameterProduct parameters

Model	DGC-120*1000	DGC-150*1000	DGC-200*1500	DGC-20015002	DGC-300*1000	DGC-315*1500	DGC-132*1000
Body diameter（mm）	120	150	200	200	300	315	132
Body length(mm)	1000	1000	1500	1500	1000	1500	1000
Neck No. On Lid	2	2	2	2	2	2	2
Filter unit	Removable, washable and replaceable
Filter material	Teflon membrane or glass sand core
Discharge	Knob type glass valve
Working Temp range	-80℃to 200℃
