Basic Information

Product Name：Filter reactor

Product Model：DGX-100L

Product Brief：

Filter reactor, also known as peptide solid-phase synthesis reactor, is mainly used in pharmaceutical, chemical, laboratory and other institutions of organic synthesis experiment with Chinese equipment, used in organic synthesis experiment, is one of the main equipment in biochemical pharmacy，

Product FeaturesProduct characteristics

The glass parts of the glass solid-phase reaction kettle are all made of high borosilicate 3.3. The interface is grinded evenly. The polytetrafluoroethylene sealing material makes the vacuum degree in the kettle reach -0.098mpa, which can meet the requirements of online distillation. The famous brand electric stirrer has no brush, no spark and can work continuously. The kettle body is made of double-layer glass by sintering. Cooling liquid and heating liquid can be passed between the two layers. The unique liquid feeding mode makes the heat conduction faster and more uniform. The special design of the filter screen plate at the bottom of the boiler enables the equipment to bear the pressure of up to 100kg reaction liquid and avoid dead bodies at the bottom of the boiler. The filter device is made of flange and Teflon material and connected with the kettle body. The filter screen can be Teflon filter membrane / nylon mesh / sand core / stainless steel mesh, which is convenient for disassembly, cleaning and replacement.

Glass solid reaction kettle is a kind of glass reaction kettle with active filter sand core, which can meet the needs of customers' production and development. It can be divided into single-layer and double-layer.

Double layer filter reactor, jacket can be connected with oil bath, precise control of reaction or crystallization temperature in the reactor body, make the reaction more fully.

Composition of filtration system:

Filter plate support: Teflon filter plate

Filter screen: Teflon filter membrane / glass sand core / nylon screen or stainless steel screen

Its usage is similar to that of ordinary double glass reactor

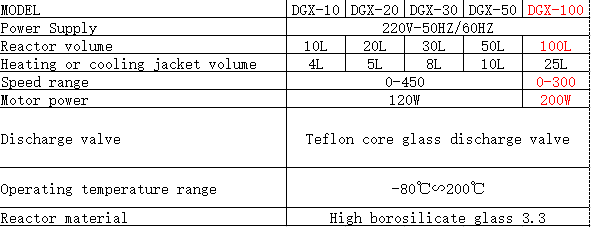

Product ParameterProduct parameters

Product InformationProduct information

. The equipment is mainly used for peptide solid-phase synthesis, post reaction filtration operation, and is suitable for various organic synthesis reactions such as peptide

2. All glass parts are made of high borosilicate glass 3.3, and the interface is grinded evenly.

3. There is a feed port at the top of the reactor, and negative pressure feed can be used

4. The high-power agitator has no brush and spark, and can work continuously for a long time

6. The kettle body is sintered with double-layer glass; the interlayer can be filled with coolant or heat transfer oil.

7. The special design of the filter screen plate at the bottom of the boiler enables the equipment to withstand the reaction liquid pressure of up to 100kg and avoid dead bodies at the bottom of the boiler

8. The filter device is convenient for removal, cleaning and replacement,.

9. Discharge PTFE discharge valve,.

10. The mixing rod is made of all-around Teflon, the rod core is made of stainless steel, seamless and residue free, which is more convenient for cleaning.
