Basic Information

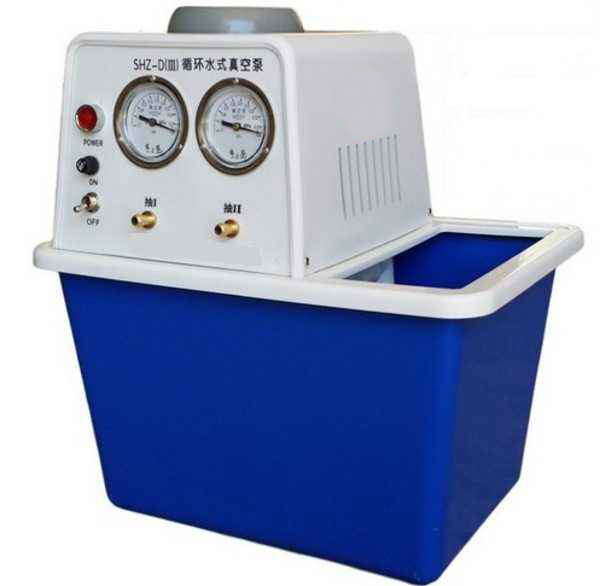

Product Name：Circulating water vacuum pump SHZ-DIII

Product Model：SHZ-DIII

Product Brief：

SHZ bench type series vacuum pump is based on the multi-purpose vacuum pump for circulating water. According to the characteristics of small laboratory area and referring to Japanese bench type pump, it is made of one-time molded shell and reduced volume. It has the characteristics of small volume, light weight, beautiful appearance, etc

Product FeaturesProduct characteristics

1. The machine adopts double taps, which can be used separately or in parallel, and is equipped with two vacuum meters

2. The main components are all made of corrosion-resistant materials, and the water tank is made of newly developed integrated engineering plastics, which can meet the requirements of dissolving organic solvents and corrosion damage;

3. It is corrosion-resistant, pollution-free, low noise and easy to move. It can also install a vacuum regulating valve according to the user's needs

Product ParameterProduct parameters

Vacuum degree: - 0.098mpa (circulating water temperature 0 ~ 25 ℃)

Pump displacement: 60L / min

Single nozzle air extraction rate: 10L / min

Motor power: 180W

Working voltage: ~ 220V + 10% 50Hz

Water tank volume: 15L

Noise: < 50dB >

Lift: 8M

Self weight: 15kg

Product InformationProduct information

1. The water saving effect is obvious. Because of the water circulation operation, the water added into the water tank can be used repeatedly, which overcomes the phenomenon that a large amount of water is wasted when the method of directly flushing and draining tap water is used to obtain the vacuum. According to the actual measurement, the product can save more than 8 tons of water under the condition of the same vacuum degree, and the one-time water can be used for a long time, which is lack of water source Or a laboratory with insufficient water pressure is particularly suitable

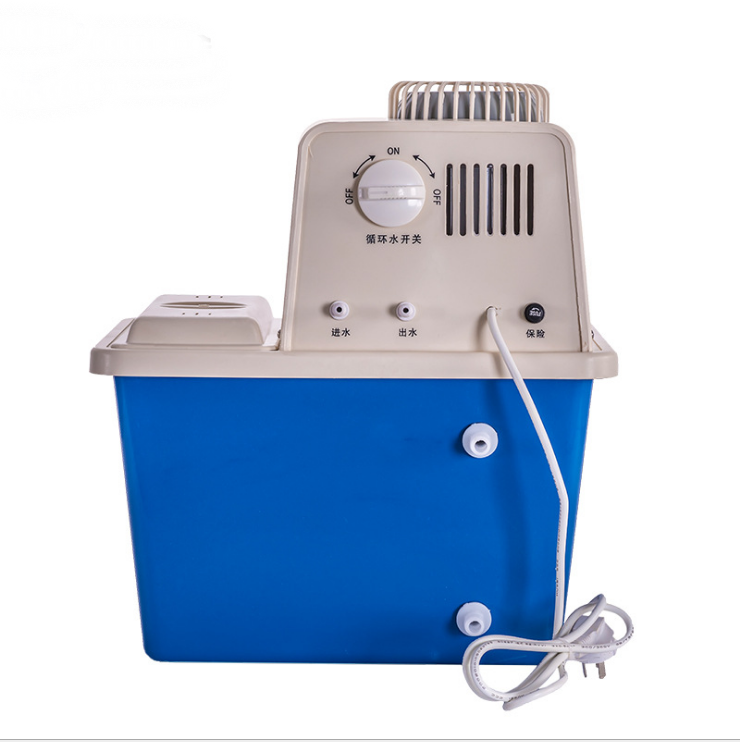

2. Multi function comprehensive use. This machine can not only provide vacuum conditions, but also carry out water automatic external circulation at the same time, and provide circulating cooling water for the reaction device. This machine is connected with the self supplied water source, and can maintain the temperature of circulating water under the condition of continuous operation for a long time through appropriate supplement of water source, which can not only ensure the vacuum degree does not drop, but also realize the supply of circulating cooling water

3. The pump head of the machine is directly immersed in the water without a water bottle. The whole machine is low in height, small in volume, light in weight, and easy to move. It can be placed on the workbench for easy operation and observation. The upper cover of the water tank is movable and can be opened for easy water filling and maintenance

4. The machine is equipped with two suction nozzles, which can be used for single or simultaneous suction operation. Each suction nozzle is equipped with a suction meter, which can easily observe the vacuum degree. The suction path is equipped with a check valve, which can prevent the circulating water from flowing back to the vacuumized equipment when the vacuum operation is stopped

5. Corrosion resistant and pollution-free. The water pump parts of this machine are made of corrosion-resistant materials. The water tank is made of ABS plastic. The one-time forming is not affected by the corrosive substances such as acid and alkali. At the same time, there is no oil pollution in the laboratory

6. The machine works stably and reliably with low noise
